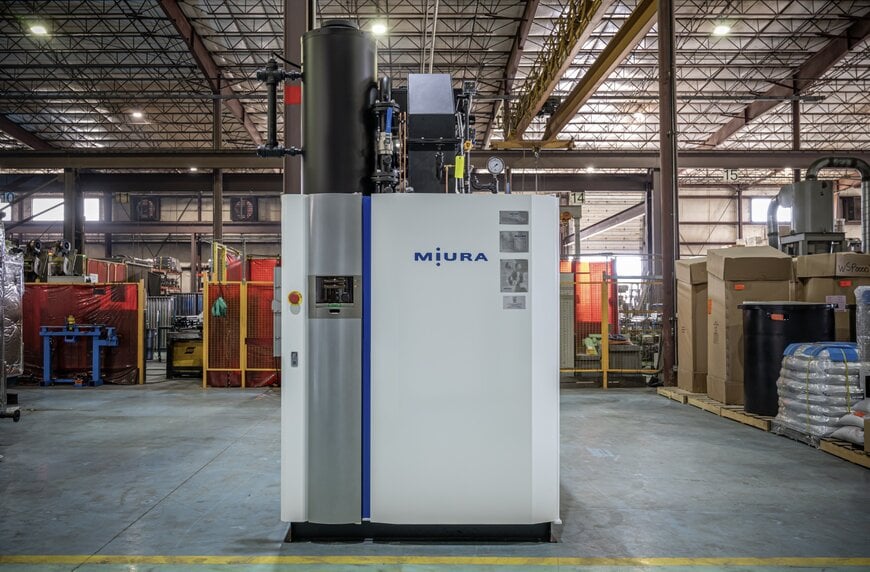

High-Capacity Steam in a Compact Footprint

Miura America is releasing a high-capacity, low-emission commercial steam generation unit to support demanding production requirements in manufacturing and processing facilities. This modular thermal solution provides rapid-response steam production, addressing the structural need for scalable and efficient energy management within complex industrial infrastructures.

Operational Capacity and Pressure Configurations
The newly deployed system delivers a thermal output ranging from 250 to 300 boiler horsepower (BHP), producing between 8,630 and 10,350 pounds of steam per hour. To accommodate varying industrial processing requirements, the architecture is available in multiple pressure configurations. Standard-pressure models operate between 70 and 150 PSI, while high-pressure variants function between 170 and 270 PSI. This flexibility allows facility engineers to align thermal performance with specific application demands, maintaining a consistent energy platform across diverse manufacturing environments.

Thermal Efficiency and Emission Mitigation
Managing resource consumption and adhering to strict air-quality regulations are critical parameters for modern boiler rooms. The platform achieves thermal efficiency levels of 87 percent in standard-pressure applications and 86 percent in high-pressure configurations. Fuel flexibility is maintained through compatibility with both natural gas and propane. Furthermore, the advanced combustion design facilitates significant reductions in nitrogen oxide (NOx) emissions, achieving outputs as low as 5 ppm in standard-pressure units and 12 ppm in high-pressure models. An integrated economizer further improves overall system performance by preheating incoming feedwater and recovering waste thermal energy.

Spatial Optimization Within the Industrial Steam Ecosystem
A defining characteristic of this once-through watertube design is its capability to reach full steam production in less than five minutes from a cold start, eliminating the energy waste associated with maintaining idle boilers during low-demand periods. The compact physical footprint enables facilities to either double their steam capacity within existing spatial constraints or reduce the required footprint by half for new plant constructions. For facilities planning future expansion, the units integrate into a modular multiple-installation system. This networking approach allows several units to operate sequentially, providing scalable thermal capacity and built-in redundancy for critical continuous-process operations.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

The industrial steam boiler market features established technologies ranging from traditional firetube boilers to advanced modular watertube architectures. Traditional firetube systems, manufactured by companies such as Cleaver-Brooks, typically require significantly larger physical footprints and longer startup sequences—often taking up to an hour to reach operating pressure from a cold start due to high internal water volumes. Conversely, modular once-through watertube architectures utilize low water volumes to achieve the sub-five-minute startup benchmark. The primary differentiator for this new platform is its capacity to maintain an ultra-low 5 ppm NOx emissions rating at standard pressures without relying on complex, external Selective Catalytic Reduction (SCR) systems, positioning the hardware competitively for deployment in highly regulated air-quality districts.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.

www.miuraboiler.com
