ABB's new electrical solutions enhance data center infrastructure

The load growth of an average data center is projected to double or triple in the next three years, accelerating the need for reliable and scalable electrical infrastructure. ABB Installation Products developed new solutions to integrate easily and support growing demand for data capacity and electrical reliability, helping save labor and space. ABB’s new Color-Keyed^® aluminum narrow-tongue, long-barrel, two-hole lugs help maximize uptime with a lightweight, economical alternative to traditional copper lugs. To further save time and space, ABB’s T&B Liquidtight Systems^® cable entry plates streamline cable organization and routing while maintaining ingress protection. ABB’s Ocal^® PVC-coated to PVC conduit adapters simplify transitioning between PVC-coated and PVC conduits.

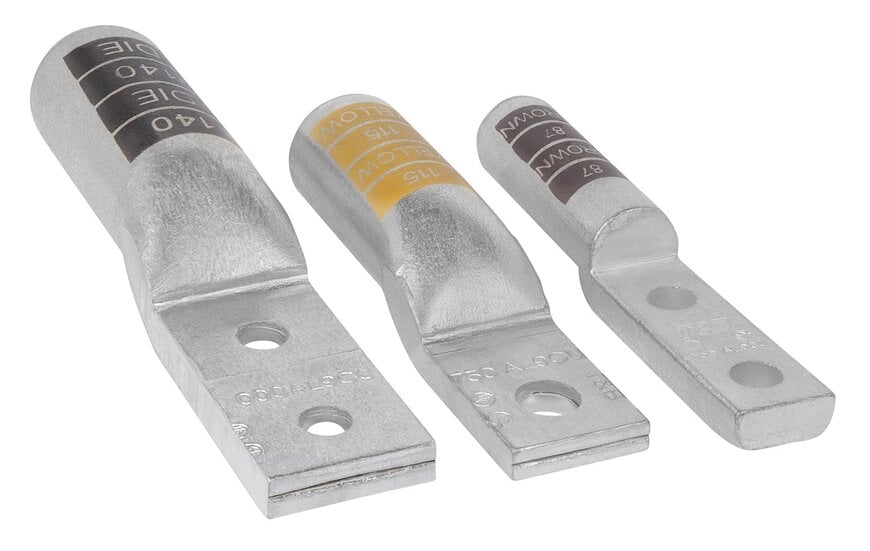

Lightweight Color-Keyed^® aluminum narrow-tongue, long-barrel, two-hole lugs from ABB Installation Products are engineered to support data center growth and reliability.

Larger loads. Less weight, space and time
As data centers manage larger loads, their infrastructure requires complex wiring and hundreds to thousands of electrical lugs, depending on size. ABB’s Color-Keyed aluminum narrow-tongue, long-barrel, two-hole lugs weigh less than copper and eliminate post-installation crimping with pre-terminated wire connections, reducing space, weight, labor and operating costs. The narrow-tongue design facilitates the termination of larger gauge wires in tight spaces, while the chamfered barrel design minimizes wire hang-ups and maximizes crimping efficiency. Dual-rated for aluminum and copper conductors, just one lug accommodates a wide range of cable sizes.

A pioneer in compression connectors for nearly 70 years, ABB’s Color-Keyed line is an industry-leading color-coding system used by installers around the world for easy, reliable and precise installations.



Designed for high-density applications, ABB Installation Products’ T&B Liquidtight Systems^® cable entry plates offer scalability and flexibility to manage network additions, changes and migrations.

Savings, speed and scalability
ABB’s T&B Liquidtight Systems cable entry plates help save space, time and costs. Designed for high-density applications, the cable entry plates offer scalability and flexibility to manage network additions, changes and migrations. Available in Type CEF Fixed and Type CEC configurable, the plates facilitate efficient entry of multiple cables into industrial enclosures with liquid-tight protection.

The compact, highly efficient plate design can replace standard cable glands to speed installation and enhance organization and performance. Supporting terminated and unterminated cables, assembly operations are completed outside the enclosure. The ultra-flexible entrance membrane accommodates a wide range of cable sizes and has a reliable seal to maintain ingress protection, even in the absence of cables. Rated UL 508 and for ingress protection* UL Type 4, 4X, 12, 13 and IEC IP66, ABB engineered these cable entry plates to withstand the rigors of industrial and commercial applications.

ABB Installation Products’ Ocal^® PVC-coated to PVC conduit adapters provide a reliable, long-lasting connection from a single component ready to use right out of the box.

Easy, fast installation
Driven by installer feedback, ABB Installation Products’ first one-piece Ocal PVC-coated to PVC conduit adapter helps simplify installations and reduce labor costs. Unlike traditional methods that require multiple parts and extensive manual adjustments, this single, streamlined solution matches traditional costs while improving efficiency.

Creating a seamless transition between PVC-coated rigid metallic conduit (RMC) and schedule 40 or 80 rigid PVC conduits, the Ocal adapter helps ensure a robust connection for conduits transitioning power from underground to above ground. Beneficial for fast-paced data center demands, this consistent installation method enables contractors to complete projects correctly and confidently.
