High-Speed Camera Enables Non-Contact Vibration Monitoring Platform
Hiroshima University researchers used Mikrotron EoSens CXP-12 in a GPU-based vision system to capture 1000 fps images, enabling accurate, full-field vibration monitoring.
mikrotron.de

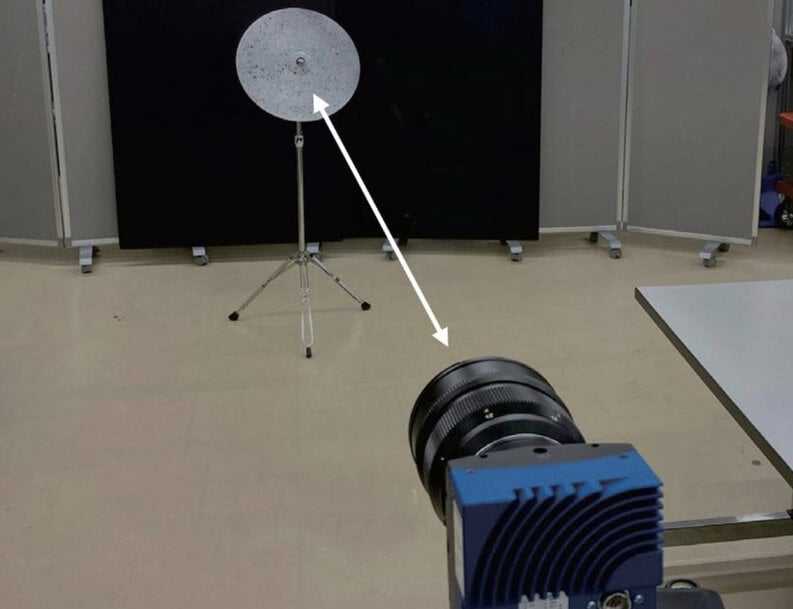

Mikrotron EoSens CXP-12 camera captures images of a vibrating metal cymbal at a distance of 4 meters (photo courtesy of Hiroshima University)
Vibration monitoring is widely used in mechanical analysis, especially for machinery with reciprocating and rotating parts, including engines, bearings, gear boxes, and motors. Monitoring vibration data helps machine operators identify potential failure points early-on, thereby reducing maintenance and downtime. Likewise, vibration monitoring is a valuable tool in monitoring the structural health of civil infrastructures. An example of this would be surveying bridges for fatigue due to traffic or environmental loads.
Traditionally, vibration monitoring has been conducted using various types of contact sensors, such as accelerometers or piezoelectric sensors, that measure displacement, velocity, and acceleration.
Both accelerometers and piezoelectric sensors are effective for measuring vibrations, however, they have the following limitations:
- Requirements for physical contact to the surface being monitored can be challenging for moving, rotating or inaccessible components.
- Each sensor monitors vibrations at a specific point, requiring multiple sensors for large or complex structures.
- Harsh environments -- extreme temperatures, humidity, or corrosive conditions -- can degrade sensor performance or lifespan.
- Sensor maintenance, such as recalibration or replacement, can be time-consuming and costly, especially in remote or hazardous locations.
- Many contact sensors rely on wired connections, which can limit their use in applications where cabling is impractical.
Non-Contact Vibration Measurements
To overcome these limitations, researchers at the Graduate School of Advanced Science and Engineering, Hiroshima University (Hiroshima, Japan) have developed a GPU-based high-speed vision platform capable of remotely visualizing vibrations. To do so, scientists used a Mikrotron EoSens CoaXPress 12 camera to capture 1920 x 1080 8-bit gray images of vibrating objects at a capture rate of 1000 frames-per-second (fps). The images were transmitted to a PC that estimated vibration displacements at frequencies in a range of 0–500 Hz. Responses were displayed on the PC's monitor in real-time.
In addition to the Mikrotron EoSens CXP-12 camera, the video platform consists of a CoaXPress CXP-12 frame grabber, an 85mm camera lens, and a Intel Core CPU i9 PC accelerated by an NVIDIA GeForce RTX 3090 GPU board. The parallelized algorithm was implemented on the GPU using the C++ language and CUDA Toolkit 11.4 with Microsoft Visual Studio Community.
To verify the system's effectiveness, two sets of tests were conducted that documented vibration frequencies of an oscillating cymbal and a steel box.
For the first test, a metal cymbal was observed as it freely vibrated after being struck with a wooden stick. Images were captured by the Mikrotron camera at a distance of 4 meters. The cymbal had been painted in a black and white speckled pattern for the camera to use as measurement points. Results showed peak frequencies corresponding to the natural frequencies of a cymbal. Vertical velocity components were stronger at the edge of the cymbal while those around the center vibrated weakly.
In the second test, an industrial steel box was forcibly vibrated by setting it on a vibration-testing machine. Like the cymbal, the box was painted in a black and white speckled pattern. One of the findings was that although all points were vibrating at the same peak frequency of the testing machine, the amplitudes distributed on the top region of the box were larger than those distributed on the bottom. This type of data collection is useful in structural analysis and mechanical defect identification.
In both tests, the vibration visualization system was verified to accurately estimate full-field vibration responses at different levels of frequencies, demonstrating similar results as standard contact sensors. Operators were able to directly observe the frequencies as visible image data by displaying them on a PC monitor.
For future work, the Hiroshima University researchers plan to improve the system to generate more accurate velocity fields. They also aim to assess more practical applications of the system, such as bridge vibration monitoring and aided analysis for structural designs.
